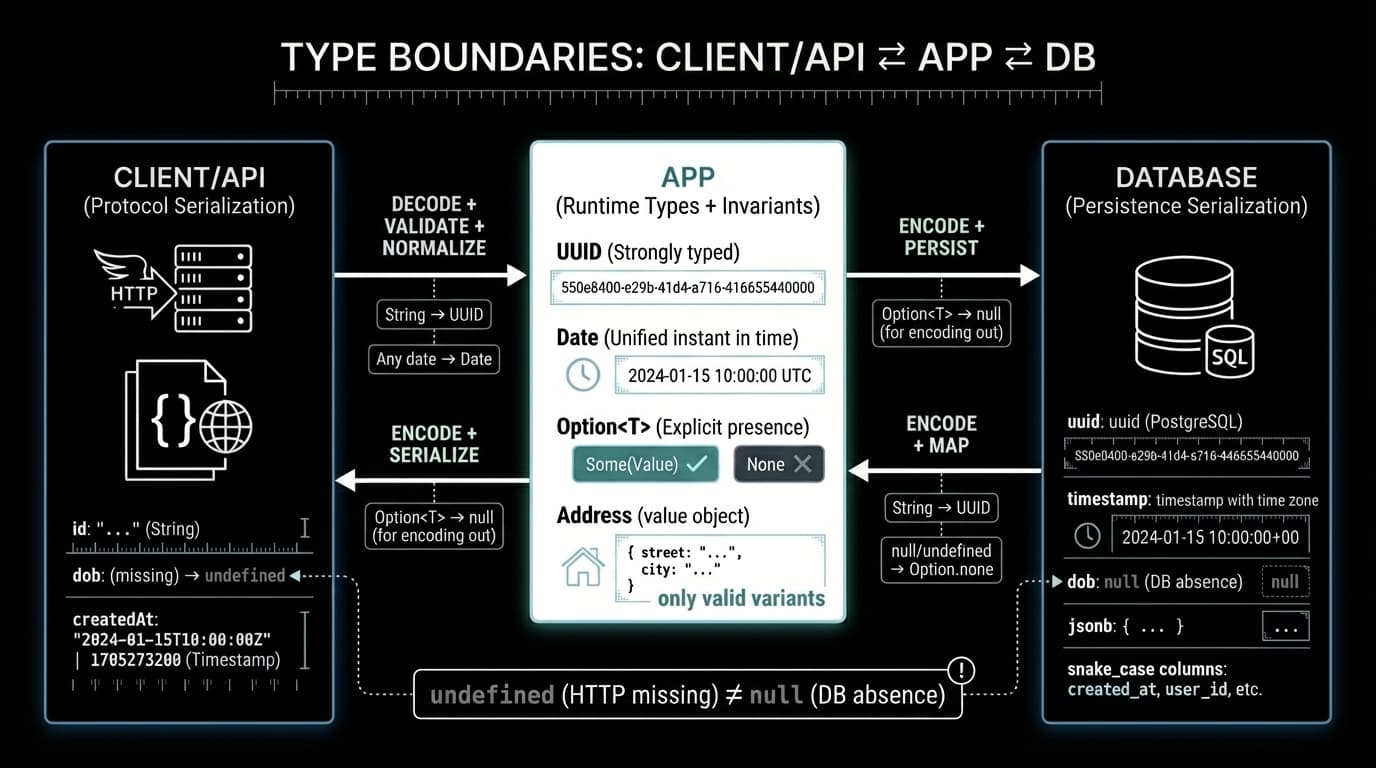

Type Boundaries: Client/API ⇄ App ⇄ DB

What is a Type Boundary?

A type boundary is any point where data crosses between “outside your code” and “inside your code”.

• Outside your code, data is just bytes / strings / JSON / rows.
• Inside your code, you want meaningful runtime types and invariants you can rely on.

So a type boundary is the place where you must do two things:

• Decode: turn “serialized stuff” into “runtime stuff”
• Encode: turn “runtime stuff” back into “serialized stuff”

This is not a Clean Architecture / DDD concept. It’s a practical integration concept: if you can’t fully trust the shape/meaning of a value, you’re at a type boundary.

Quick Mental Model (works in any architecture)

Rule of thumb: if a function takes unknown, any, string, or a “row shape”… treat it as boundary code.

What’s happening: your app lives between systems that speak different “wire formats”.

Two common serializations:

• Protocol serialization (HTTP/JSON): missing fields, strings everywhere, dates in “whatever” formats.
• Persistence serialization (DB rows/columns): null instead of “missing”, flattened columns, JSON blobs, database-native types.

Why it doesn’t map 1:1:

• HTTP can omit a field (undefined); DB typically stores absence as null.
• Your app wants guarantees (UUID, Date, Option<T>); boundaries give you raw primitives.
• Without a single decoder, invalid variants (wrong combinations of fields) creep in over time.

Goal: decode + validate once at the edge, then encode deterministically when leaving the app.

• Client/API boundary: Where external requests come in (HTTP, GraphQL, webhooks)
• Application boundary: Your code’s internal representation (types + invariants you can rely on)
• Database boundary: Where data is persisted (PostgreSQL, MySQL, MongoDB)

Data crosses boundaries when:

• A client sends a request → your app decodes it
• Your app reads/writes the database → you map rows/columns to your runtime types (and back)
• Your app sends a response → your app encodes it

Ideal Fix: One Schema = One Encoder/Decoder + Variant Validation

What we actually want is one source of truth that can:

• Decode multiple boundary representations into one runtime type (via unions + transforms)
• Validate invariants so only valid variants exist (via schema filters/refinements)
• Encode back out predictably (true two-way transformations)

In other words: instead of “a bit of parsing here, a bit of mapping there”, we aim for a single schema per concept (e.g. HostSchema) that acts as the encoder/decoder for your app.

Concretely, that looks like:

• Union-based decoding: accept “what the world sends” (string/number/Date, missing vs null, etc.) and normalize it.
• Schema-derived types: runtime type (S.Schema.Type<...>) and boundary type (S.Schema.Encoded<...>) stay in sync automatically.
• Filters/refinements: attach rules so invalid combinations never become runtime values.

If you’ve ever felt “why am I converting the same thing in five places?”, that’s the phenomenon called out around step 17 in our Domain Overview doc: manual encoding/decoding spreads everywhere unless you centralize it.

This document shows you exactly how to implement these transformations using a Host entity as a real-world example.

// Client-facing shape (API DTO)
type HostRequestDTO = {
  id: string;                    // Just a string - could be anything!
  userId: string;                // No validation that it's a valid UUID

  createdAt: string | number | Date;
Dates arrive in multiple formats: ISO string, timestamp, or Date object
  updatedAt: string | number | Date;

  dob?: string | number | Date | null;  // Optional + multiple formats
  phoneNumber?: number | null;           // null vs undefined vs missing
  profileImage?: string | null;

  address?: unknown;
  socialLinks?: unknown;
};

// Internal/runtime expectation (inside the app)
import { BaseEntity, IEntity } from "@domain/utils/base.entity";
import { UUID } from "@domain/utils/refined.types";
import { Option as O } from "effect";

interface IHost extends IEntity {
  userId: UUID;                    // Validated, branded UUID type
  dob: O.Option<Date>;            // Normalized to Date, explicit optionality
  phoneNumber: O.Option<number>;  // Explicit optionality with Option<T>
  profileImage: O.Option<string>;
}

Key Lessons

1. Keep serialized shapes at the edges:

   • Outside the app: strings, numbers, nulls, “maybe missing”, and loosely structured objects.
   • Inside the app: refined (UUID), normalized (Date), explicit (Option<T>).

2. Schemas give you symmetry:

   • StringToUUID and DateTimeFromAny decode messy inputs and give you predictable encoding on the way out.

3. Pick one “missing” representation internally:

   • normalizeMaybe turns null | undefined | value | Option<value> into Option<T>.

4. Use Maybe<T> only at boundaries:

   • Keep it permissive at the edges; keep it strict in the core.

5. Validate once, then trust your types:

   • Entities/value objects enforce invariants; schemas handle parsing/coercion/encoding.

Side topic: Value Objects (Address + SocialLinks)

Throughout this document (and the Domain Overview doc), you may have noticed that address and socialLinks are handled differently from scalar fields like dob or phoneNumber. This is an application modeling choice (how you structure your internal types), not a boundary concern.

The Pattern You've Seen

In the constructor:

constructor(data: SerializedHost, address: Address, socialLinks: SocialLinks) {
  super();
  this._fromSerialized({
    id: data.id,
    createdAt: data.createdAt,
    updatedAt: data.updatedAt
  });

  // Scalar fields use boundary utilities
  this.userId = data.userId as UUID;
  this.dob = normalizeMaybe(data.dob);
  this.phoneNumber = normalizeMaybe(data.phoneNumber);
  this.profileImage = normalizeMaybe(data.profileImage);

  // Value objects passed directly
  this.address = address;
  this.socialLinks = socialLinks;
}

And when serializing:

serialize(): SerializedHost {
  return {
    ...this._serialize(),
    userId: this.userId,
    dob: optionToMaybe(this.dob),
    phoneNumber: optionToMaybe(this.phoneNumber),
    profileImage: optionToMaybe(this.profileImage),

    // Value objects serialize themselves
    address: this.address.serialize(),
    socialLinks: this.socialLinks.serialize()
  };
}

Why This Difference?

Value Objects are used when multiple primitives represent one cohesive concept:

Address Could Have Been Primitives:

interface IHost extends IEntity {
  userId: UUID;
  dob: O.Option<Date>;
  phoneNumber: O.Option<number>;
  profileImage: O.Option<string>;

  // Scattered primitives
  country: string;
  city: string;
  state: string;
  zipCode: string;
  street: string;
}

Problems:

• Primitive obsession: Five separate fields for one concept
• Scattered validation: Address rules mixed with Host validation
• Hard to reuse: Other entities duplicate these fields
• No encapsulation: Can't enforce country-specific rules (US addresses need state, UK addresses don't)

Instead, Extract a Value Object:

interface IHost extends IEntity {
  userId: UUID;
  dob: O.Option<Date>;
  phoneNumber: O.Option<number>;
  profileImage: O.Option<string>;

  // Cohesive value object
  address: Address;
  socialLinks: SocialLinks;
}

Benefits:

• Conceptual integrity: All address fields stay together
• Encapsulated validation: Address validates itself
• Reusability: User, Organization all reuse Address
• Type safety: Can't pass individual strings where Address expected

Value Object Implementation

A value object follows the same boundary patterns as entities:

// address.vo.ts
export const AddressSchema = S.Struct({
  country: S.String,
  city: S.String,
  state: S.optional(S.String),
  zipCode: S.String,
  street: S.optional(S.String)
});

export type AddressType = S.Schema.Type<typeof AddressSchema>;
export type SerializedAddress = S.Schema.Encoded<typeof AddressSchema>;

export class Address {
  readonly country: string;
  readonly city: string;
  readonly state: O.Option<string>;
  readonly zipCode: string;
  readonly street: O.Option<string>;

  private constructor(data: AddressType) {
    this.country = data.country;
    this.city = data.city;
    this.state = data.state;
    this.zipCode = data.zipCode;
    this.street = data.street;
  }

  static create(input: SerializedAddress): E.Effect<Address, AddressError, never> {
    return pipe(
      S.decodeUnknown(AddressSchema)(input),
      E.flatMap((data) => {
        // Address-specific validation
        if (!AddressGuards.isValidZipCode(data.country, data.zipCode)) {
          return E.fail(new AddressValidationError("Invalid zip code"));
        }
        return E.succeed(new Address(data));
      })
    );
  }

  serialize(): SerializedAddress {
    return {
      country: this.country,
      city: this.city,
      state: optionToMaybe(this.state),
      zipCode: this.zipCode,
      street: optionToMaybe(this.street)
    };
  }
}

Integration with Host

Value objects are created independently in the factory method:

static create(input: SerializedHost): E.Effect<Host, HostError, never> {
  return pipe(
    S.decodeUnknown(HostSchema)(input),
    E.flatMap((data) => {
      // Create value objects with their own validation
      return E.all([
        Address.create(input.address),
        SocialLinks.create(input.socialLinks)
      ]).pipe(
        E.map(([address, socialLinks]) =>
          new Host(data, address, socialLinks))
      );
    })
  );
}

Decision Guide

Use primitives when:

• Single atomic concept (phoneNumber, age, email)
• No related fields to validate together

Use value objects when:

• Multiple primitives form one concept (Address)
• Has its own validation rules
• Will be reused across entities
